Slackline 4130 Olive Grey
Regular price$751.00
/
All frames come with... 1. Stanton Seat Clamp 2. Set of Dropouts 3. 148 Axle 4. Bottle Boss Bolts 5. Hose guides Looking for anything else? Don't hesitate to check out our components and spares for Headsets, Handlebars, Stems and other bits and bobs.
Worldwide shipping
In stock, ready to ship
Inventory on the way
Can't see what you're looking for? We have loads of unpainted stock ready for your choice of finish! Check out some of our colour options here: https://www.youtube.com/watch?v=c15iURuxJGo Get in touch and we'll assist you in choosing the perfect finish for your frame contact@stantonbikes.com

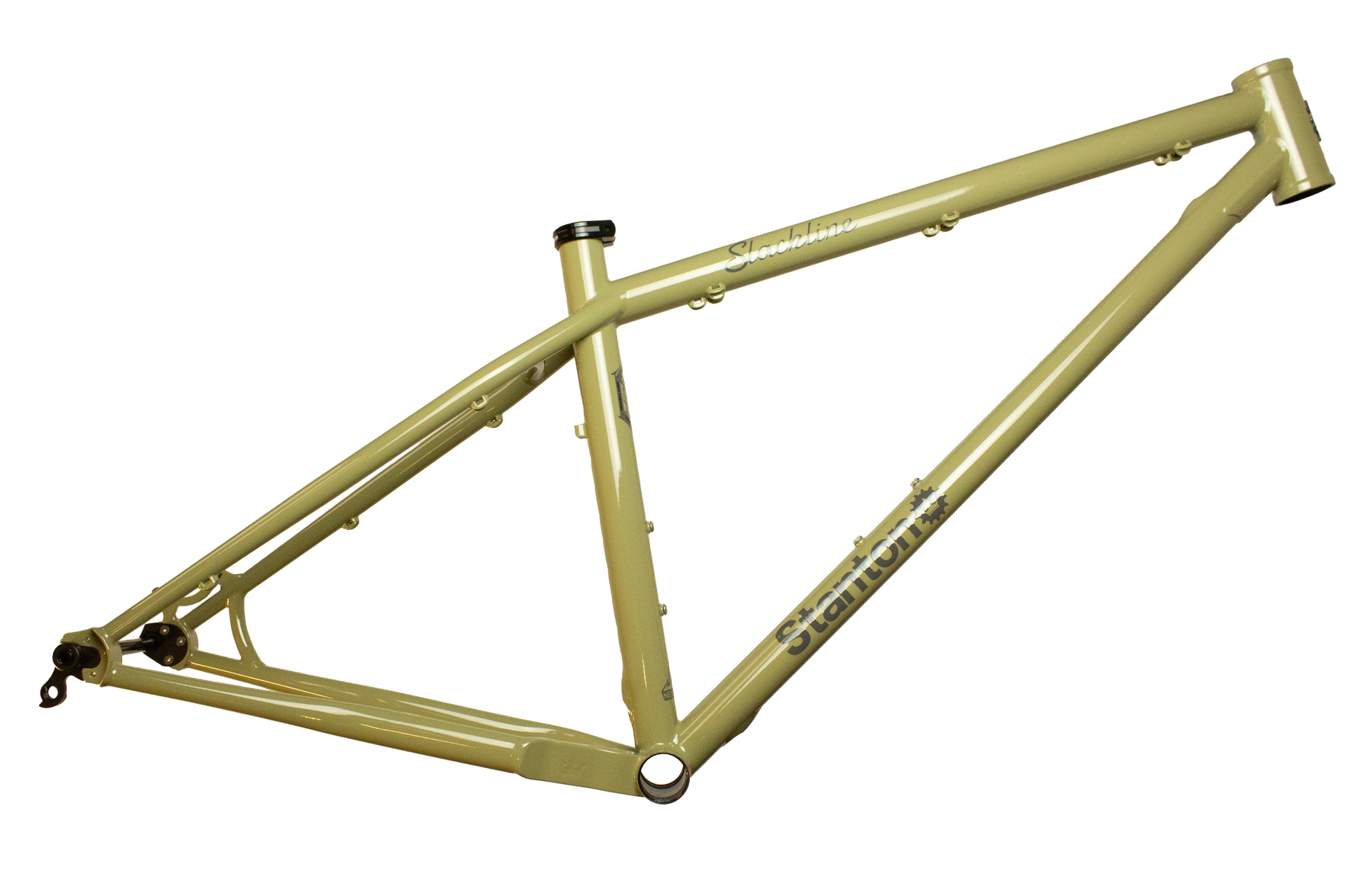

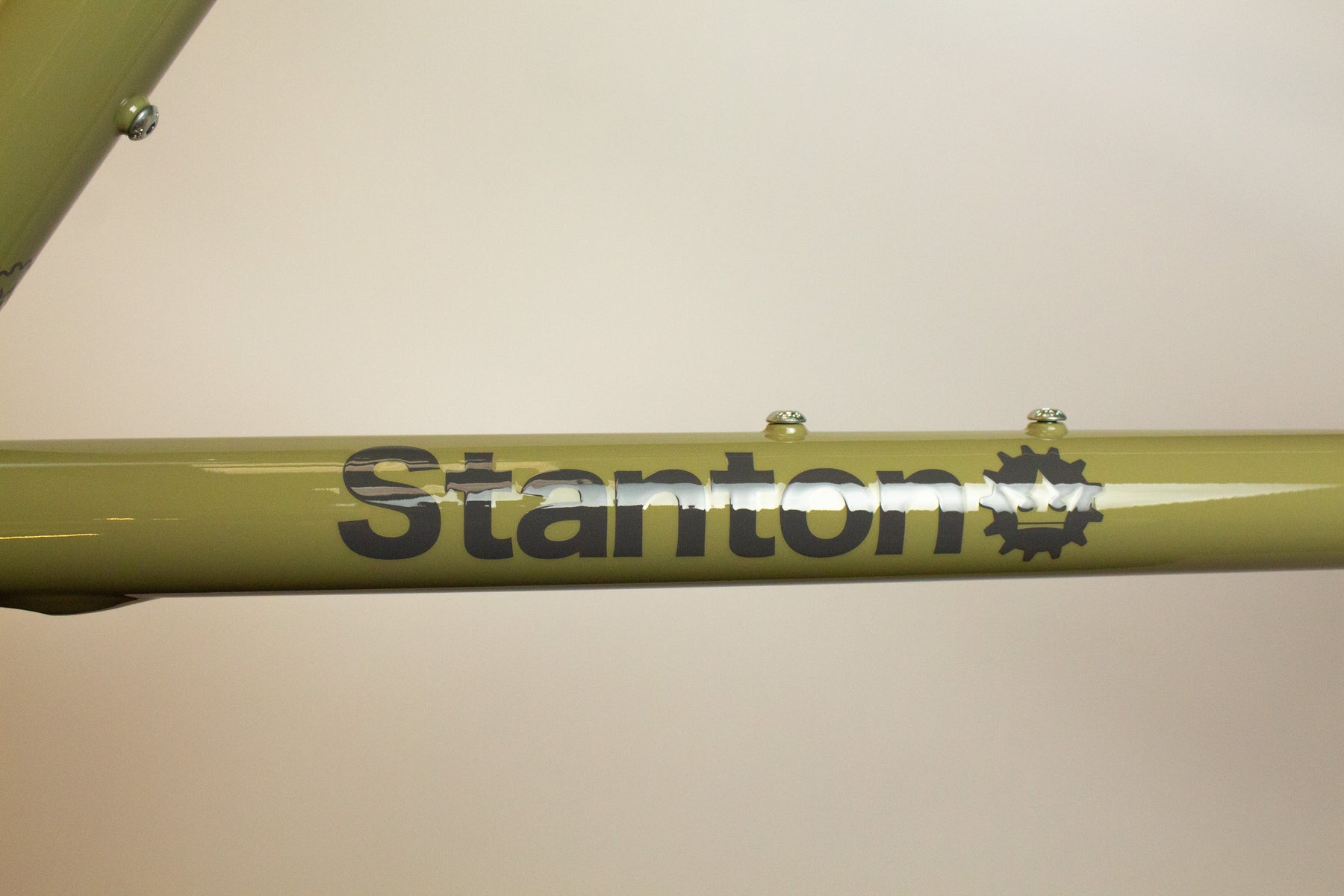

Slackline 4130 in Olive Grey w/ Grey Decals
PLAY THE TRAIL
THE OG OF THE STANTON RANGE AND NOW IN ITS GREATEST ITERATION. FROM GROOMED TRAIL CENTRE TO THE ROUGH STUFF IN YOUR LOCAL WOODS, THE SLACKLINE WILL HAVE YOU SKIPPING THROUGH THE LOT.
Features

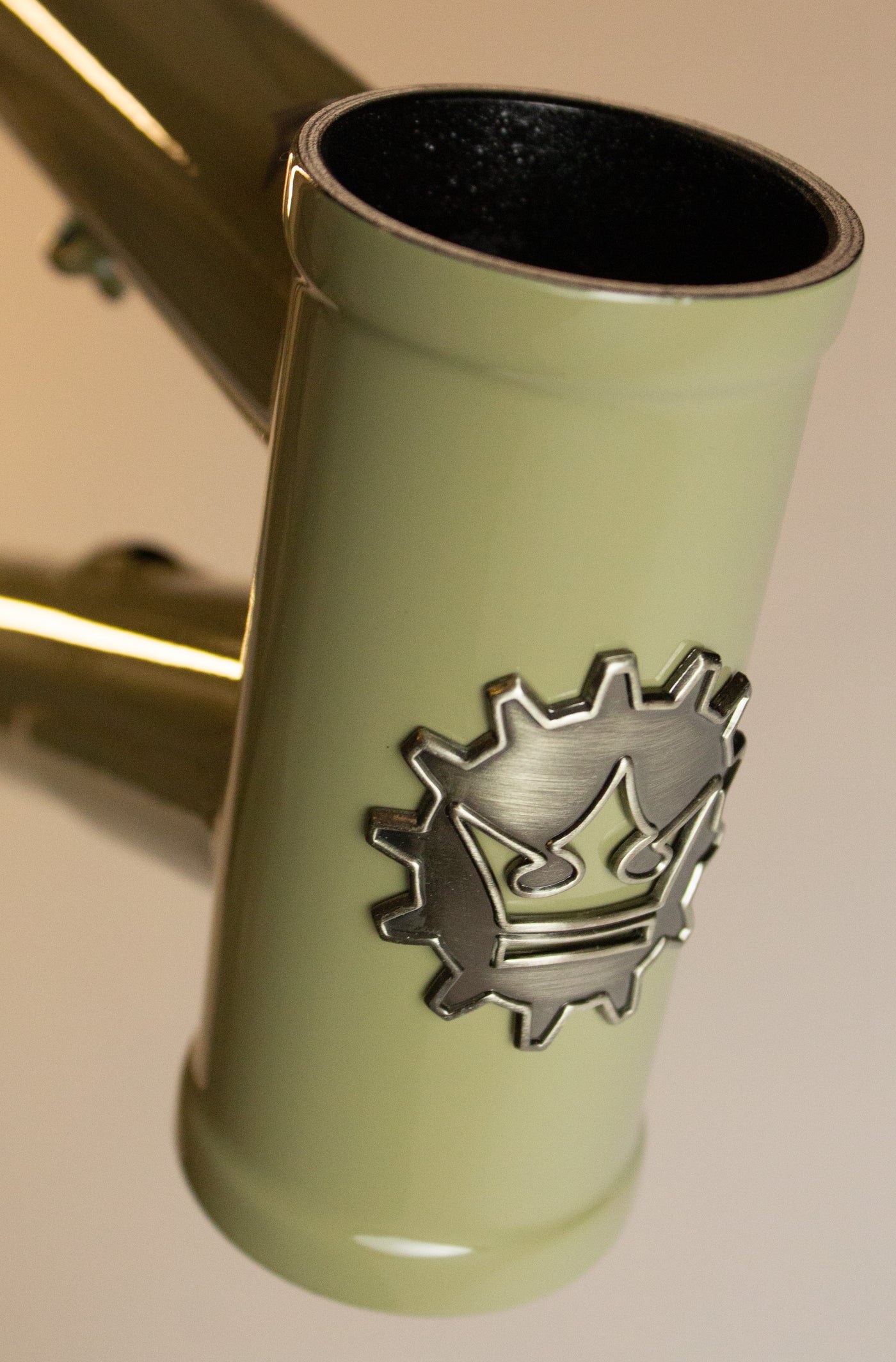

1. Reynolds 853 44mm head tube with custom CNC’d logo top tube brace, gusseted down tube and our super-sweet alloy head badge.
2. 30.9 fully stealth routed dropper-compatible seat tube (34.9 clamp) feeds round the BB and into the down tube.

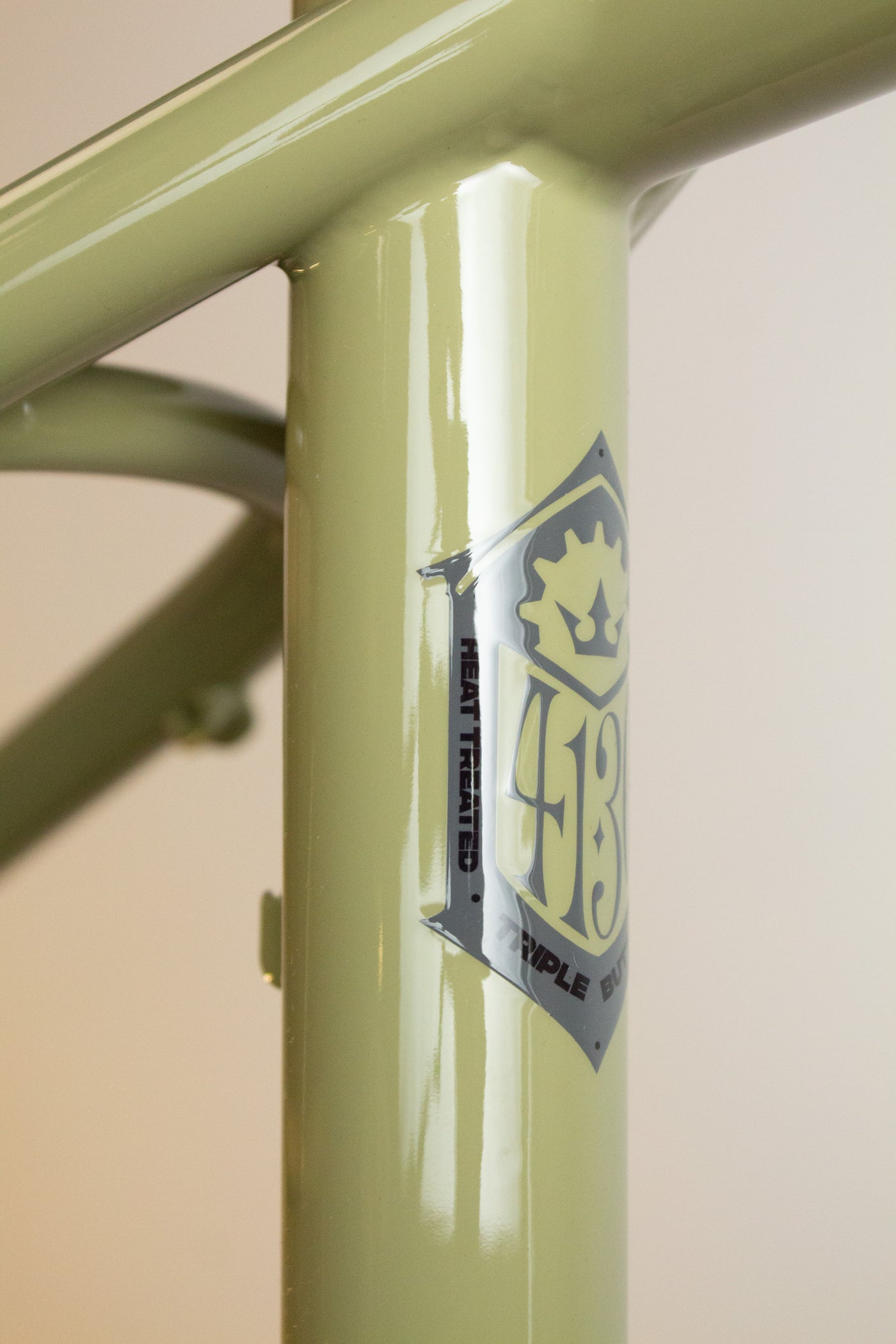

3. Triple-butted Reynolds 853 DZB seamless, air-hardened and heat-treated down tube and top tube, and custom swaged and butted Reynolds 853 seamless, air-hardened heat-treated seat tube. Takes full-length gear outer for consistent, weather-proof shifting.
4. Short, tapered chainstays (427mm) made from cold-worked Reynolds 525.
5. Custom CNC’d Swapout dropouts (12 x 142, 12 x 148). Comes supplied with 12 x 148 as standard unless you specify different dropouts with your order.
6. New Custom drive side yoke creates spacing to fits high volume deep tread 2.4″ 27.5″ wheels or 2.8″ 27.5″+ tyres.
7. Recommend fork travel: 120mm - 140mm

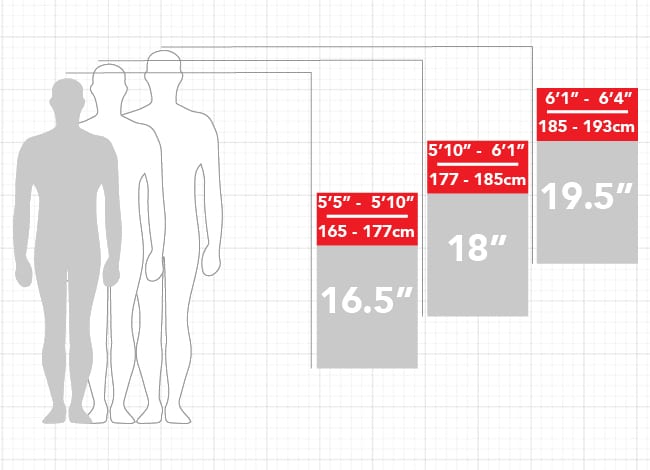

Slackline Gen 3
16.5"
18"
19.5"
1. Stack (mm)
609.8
618.97
637.31
2. Reach (mm)
438.22
460.85
481.11
3. Virtual Top Tube (mm)
600
625
650
4. Actual Top Tube (mm)
589.02
608.29
630.32
5. Seat Tube Length (mm)
420
457
495
6. Chainstay Lengh (mm)
428
428
428
7. Wheelbase (mm)
1148.74
1175.11
1203.16
8. Bottom Bracket Drop (mm)
48
48
48
9. Head Tube Length (mm)
110
120
140
10. Head Tube Angle (˚)
66.5˚
66.5˚
66.5˚
11. Seat tube Angle (˚)
75.5˚
75.5˚
75.5˚
12. Measurements based on 2018 140mm 27.5" Pike RCT3 25% in to the Sag. (mm)
509
509
509
