Slackline 4130 Evergreen
Slackline 4130 Evergreen
Slackline 4130 Evergreen

Slackline 4130 Evergreen

All frames come with...
  • Stanton Seat Clamp
  • Set of Dropouts
  • Rear Axle
  • Bottle Boss Bolts
  • Hose Guides

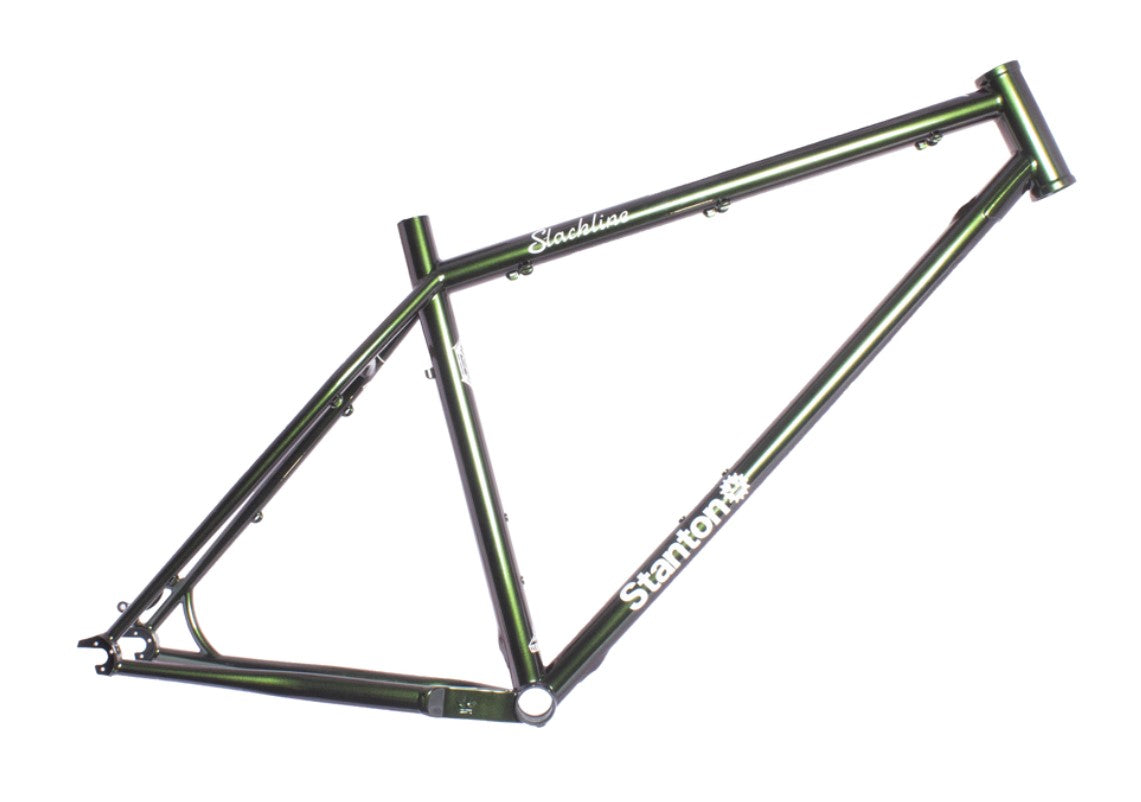

Slackline 4130 in Evergreen w/ White Decals

PLAY THE TRAIL

THE OG OF THE STANTON RANGE AND NOW IN ITS GREATEST ITERATION. FROM GROOMED TRAIL CENTRE TO THE ROUGH STUFF IN YOUR LOCAL WOODS, THE SLACKLINE WILL HAVE YOU SKIPPING THROUGH THE LOT.



Features

1. Reynolds 853 44mm head tube with custom CNC’d logo top tube brace, gusseted down tube and our super-sweet alloy head badge.

2. 30.9 fully stealth routed dropper-compatible seat tube (34.9 clamp) feeds round the BB and into the down tube.

3. Triple-butted Reynolds 853 DZB seamless, air-hardened and heat-treated down tube and top tube, and custom swaged and butted Reynolds 853 seamless, air-hardened heat-treated seat tube. Takes full-length gear outer for consistent, weather-proof shifting.

4. Short, tapered chainstays (427mm) made from cold-worked Reynolds 525.

5. Custom CNC’d Swapout dropouts (12 x 142, 12 x 148). Comes supplied with 12 x 148 as standard unless you specify different dropouts with your order.

6. New Custom drive side yoke creates spacing to fits high volume deep tread 2.4″ 27.5″ wheels or 2.8″ 27.5″+ tyres.

7. Recommend fork travel: 120mm - 140mm

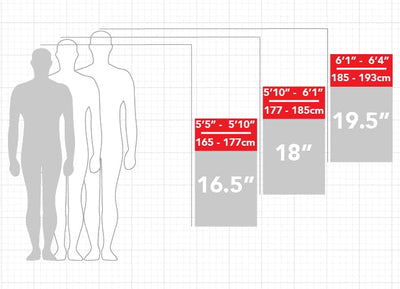

Slackline Gen 3

16.5"

18"

19.5"

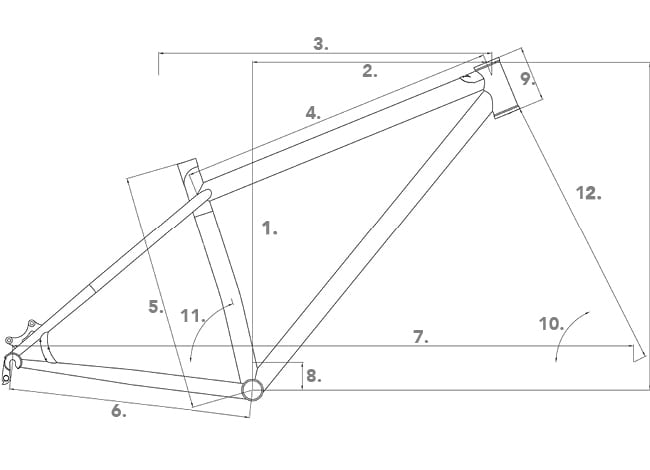

1. Stack (mm)

609.8

618.97

637.31

2. Reach (mm)

438.22

460.85

481.11

3. Virtual Top Tube (mm)

600

625

650

4. Actual Top Tube (mm)

589.02

608.29

630.32

5. Seat Tube Length (mm)

420

457

495

6. Chainstay Lengh (mm)

428

428

428

7. Wheelbase (mm)

1148.74

1175.11

1203.16

8. Bottom Bracket Drop (mm)

48

48

48

9. Head Tube Length (mm)

110

120

140

10. Head Tube Angle (˚)

66.5˚

66.5˚

66.5˚

11. Seat tube Angle (˚)

75.5˚

75.5˚

75.5˚

12. Measurements based on 2018 140mm 27.5" Pike RCT3 25% in to the Sag. (mm)

509

509

509



Regular price£699.00
/
Size
  • Worldwide shipping
  • Low stock - 1 item left
  • Inventory on the way
Can't see what you're looking for?
We have loads of unpainted stock ready for your choice of finish!
Check out some of our colour options here:
https://www.youtube.com/watch?v=c15iURuxJGo
Get in touch and we'll assist you in choosing the perfect finish for your frame
