Sherpa Ti
Sherpa Ti
Serious mile-muncher
The Sherpa Ti is a serious mile-muncher.
With geometry calculated to win races but still has the essence of playful manoeuvrability you’ve come to expect and love from Stanton frames.
The Sherpa Ti is our bench mark trail/XC-specific frame, designed to be run with 29” or 27.5″+ wheels.
One of the major improvements we’ve made over our current Reynolds 853 Steel version is tyre clearance! With a 29″ wheel you can fit a big volume and big tread 2.5 tyres with loads of mud clearance and on 27.5+ you can fit up to full 3″ tyres with good mud clearance!
This is all down to the added clearance from our newly designed CNC’d drive-side chain-stay Yoke.
The Sherpa Ti with its added tyre clearance still retains its 435mm chainstays and 67-degree head angle.
Why Ti?
We chose aerospace-grade 3AL-2.5V triple-butted tubing for this frame, selected for its unbelievable strength to weight ratio and super trail-smoothing abilities. The tubing’s internal and external diameters are carefully chosen to provide flex and stiffness in the frame where needed.
The result is a lightweight and comfortable frame that’s strong and responsive – the ultimate confidence inspiring XC race or trail-riding bike.
Features
Frame weight approximately 1.94kg (17" Model)
3AL-2.5V titanium 44mm head tube, gusseted down tube and our super-sweet alloy head badge.
Custom designed CNC’d Yoke fits 29″ wheel 2.5 tyres and 650B+ wheel and 3″ tyres!
Short chainstays (435mm) made from 3AL-2.5V aerospace-grade titanium tubing.
Swopouts for 12×142 & 12×148 Boost
Triple-butted 3AL-2.5V aerospace-grade titanium tubing with custom seat tube. Takes full-length gear outer for consistent, weather-proof shifting.
31.6 dropper-compatible seat tube (34.9 clamp) with custom tubing.
Recommend fork travel: 100mm - 130mm
Sherpa Ti frame-only prices:
- 3AL-2.5V titanium with blasted decals - £1999
- Cerakote Heritage Wrap decals + £100
- Anodised decals + £100

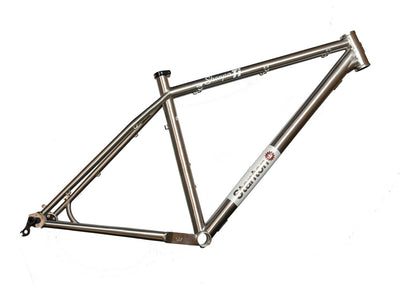

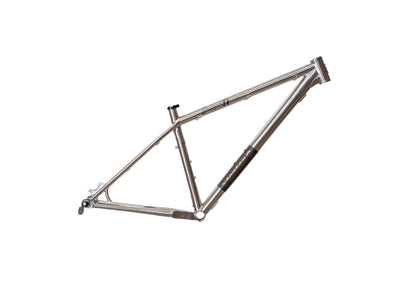

Sherpa Ti frames in stock now
Here are the fully finished frames we currently have in stock. These products are literally boxed up and ready to ship anywhere in the world within 2 weeks from your order. Our stock is selling through quickly so if you don't see the finish that you'd like then just get in touch via email and tell us what you're looking for. We have plenty of raw frames in stock waiting to be painted just the way you want it!
4 products
