Name: Sherpa 4130 Steel Blue / Cream Fade
Brand: Stanton Bicycles
Price: 751.0 USD
Availability: OutOfStock

$751.00

All frames come with... 1. Stanton Seat Clamp 2. Set of Dropouts 3. 148 Axle 4. Bottle Boss Bolts 5. Hose guides Looking for anything else? Don't hesitate to check out our components and spares for Headsets, Handlebars, Stems and other bits and bobs.

Size

17"

Worldwide shipping

In stock, ready to ship
Inventory on the way

Can't see what you're looking for? We have loads of unpainted stock ready for your choice of finish! Check out some of our colour options here: https://www.youtube.com/watch?v=c15iURuxJGo Get in touch and we'll assist you in choosing the perfect finish for your frame contact@stantonbikes.com

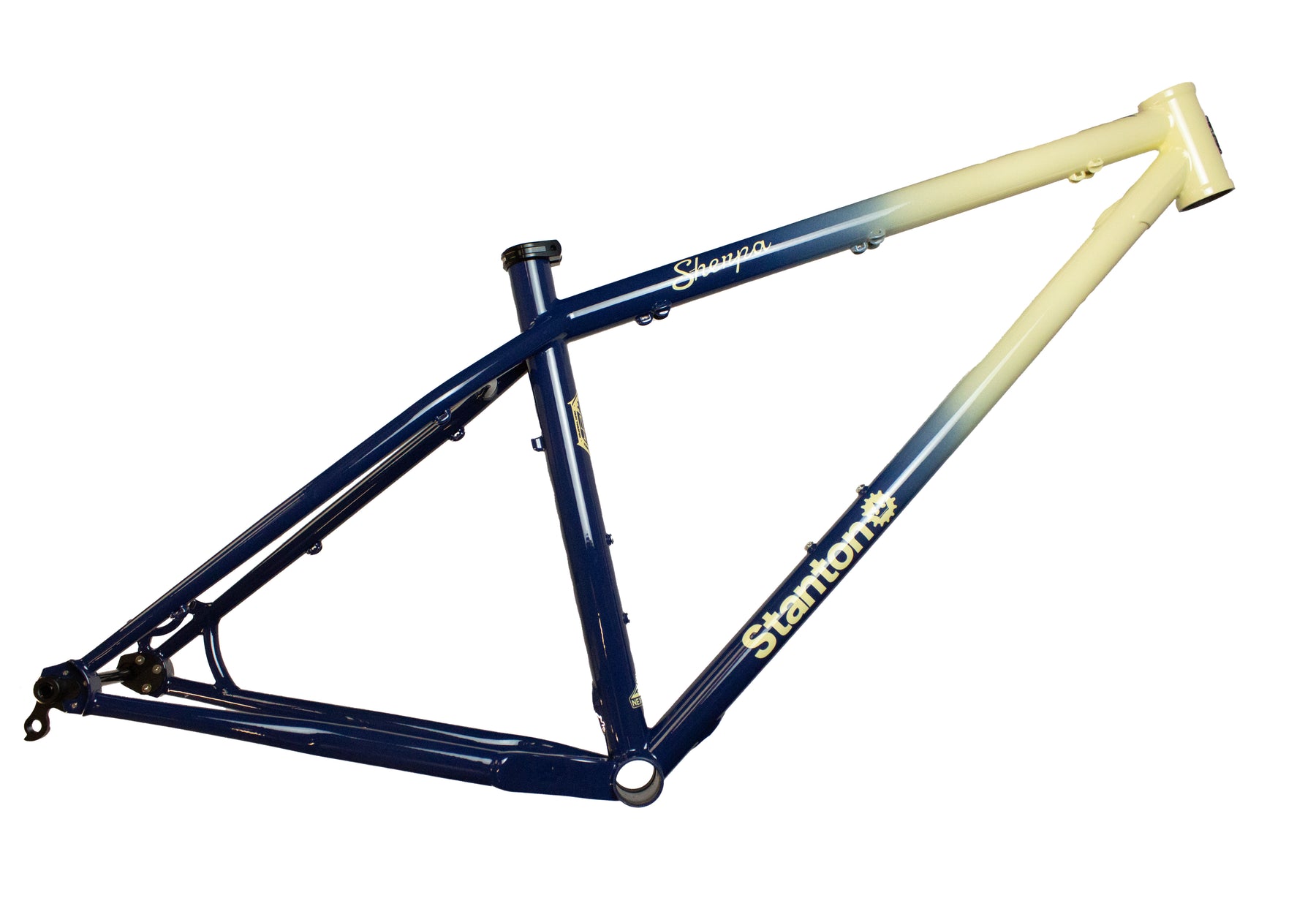

Sherpa in Steel Blue / Cream Fade

THE SHERPA IS THE ANSWER – NOW WHAT’S THE QUESTION?

Epic mile-muncher? Trail-centre hooligan? 29er XC-race weapon? 27.5+ bikepacking companion? Friend for life?

Features

1. Frame weight approximately 2.74kg (17" Model)

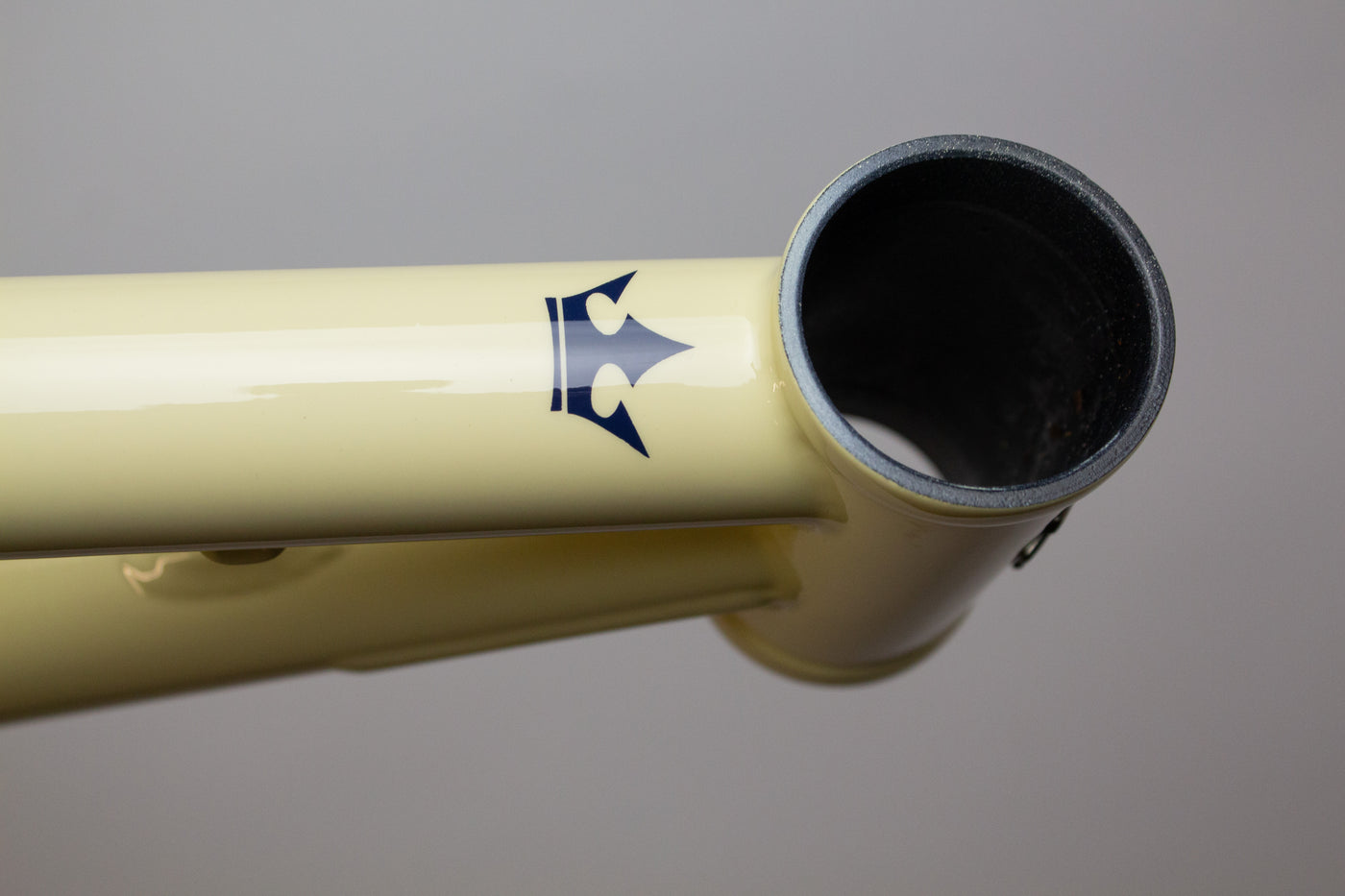

2. Reynolds 853 44mm head tube with custom CNC’d logo top tube brace, gusseted down tube and our super-sweet alloy head badge.

3. 30.9 fully stealth routed dropper-compatible seat tube (34.9 clamp and front mech) feeds round the BB and into the down tube.

4. Triple-butted Reynolds 853 DZB seamless, air-hardened and heat-treated down tube and top tube, and custom swaged and butted Reynolds 853 seamless, air-hardened heat-treated seat tube. Takes full-length gear outer for consistent, weather-proof shifting.

5. Short, tapered chainstays (435mm) made from cold-worked Reynolds 525.

6. Swopouts for 12×142 & 12×148 Boost

7. New custom drive side yoke creates spacing to fit 2.4″ 29er or full 3″ 27.5″+ tyres.

8. Recommend fork travel: 100mm - 120mm

*Sherpa Gen 3*	*17"*	*19"*	*21"*
1. Stack (mm)	599.99	618.4	636.81
2. Reach (mm)	440.99	461.22	481.46
3. Virtual Top Tube (mm)	600	625	650
4. Actual Top Tube (mm)	586.39	606.36	629.3
5. Seat Tube Length (mm)	430	482	533
6. Chainstay Length (mm)	435	435	435
7. Wheelbase (mm)	1151.06	1178.33	1206.61
8. Bottom Bracket Drop (mm)	56	56	56
9. Head Tube Length (mm)	100	120	140
10. Head Tube Angle	67˚	67˚	67˚
11. Seat tube Angle	75.5˚	75.5˚	75.5˚
12. Axle to crown height used for above measurements (mm)	500	500	500
